Hawke International
Authorised Distributor of Hawke International in Australia
MacLean Electrical is your trusted authorised distributor of Hawke International products globally. Our extensive selection of ATEX/IECEx certified, flame-proof and increased safety solutions is designed to meet the rigorous demands of hazardous areas. With an emphasis on durability, safety and ease of installation, our Hawke International cable glands, connectors and enclosures ensure the reliability and efficiency required for your critical projects.
Browse MacLean International Group Technical Library
Browse our the Cable Accessories category in our technical library for product details, specifications and images. If you can't find what you're looking for, don't hesitate to call us for a chat! In our technical library, you'll also find an enquiry basket. Simply add the products you're interested in to the basket, fill out the form and we'll promptly send you a quote.
Discover Our Extensive Range of Hawke International Products
As an authorized global distributor of Hawke International products, Maclean International offers the full product line, designed for dependability and operation within the most demanding and harsh and hazardous environments. Here we highlight some of the key Hawke International glands, and enclosures. To view a more comprehensive range and further specification, please view our Technical Library or contact our sales team (links to Technical Library and to sales team form/contact details).

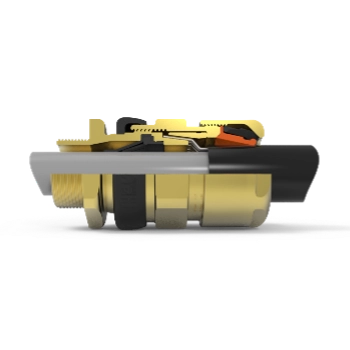

Universal Ex Glands for Hazardous Environments
Introducing the Hawke International new 501/453 Universal Ex gland, exemplifying innovation with its dual-sealing capability and suitability for Zones 1/21 and 2/22 hazardous areas. Experience the blend of safety and installation simplicity with features like:
Product Details
- Dual certified ATEX/IECEx
- Increased safety (Exe), Flameproof (Ex d), Restricted breathing (ExnR), Dust (Ext) protection
- Integral grounding ring suitable for elastomer and plastic insulated cables
- Suitable for cables exhibiting cold flow characteristics
- Reversible armour clamp
- Patented cable gland tightening guide to prevent over tightening and risk of damage
- Unique rear seal
- IP66, IP67, IP68 and IP69 ingress protection
- Barrier gland upgrade kit available to turn 501/453 UNIVERSAL into ICG/653/UNIVERSAL barrier gland

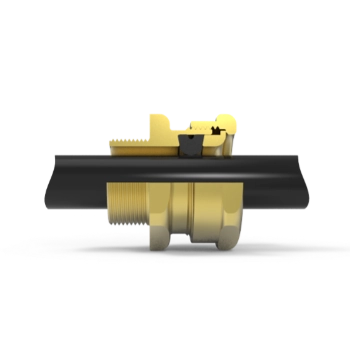

Unarmoured Cable Gland Solutions
Meet the Hawke International 501/421 Ex de & Ex e gland, a Group II certified single seal solution for non-armoured cables. Designed for hazardous areas, this cable gland is ATEX and IECEx certified. For use with non-armoured elastomer and plastic insulated cables, this gland features:
Product Details
- Single elastomeric compression EX d seal on outer sheath
- Cable damage prevention with rounded cable entry
- Entry threadforms available in metric or NPT
- IP66, IP67 and IP68 ingress protection
- Available in brass, nickel plated or 316L stainless steel
- -60⁰C to +100⁰C operating temperature
PL5 & PL6 GRP Enclosures: Lightweight and Durable
The PL5 and PL6 ranges from Hawke International offer lightweight yet durable enclosures, constructed from (Glass Reinforced Plastic) GRP for unmatched performance in harsh conditions. Their design features facilitate effortless installation and maintenance, with significant impact resistance and ingress protection.

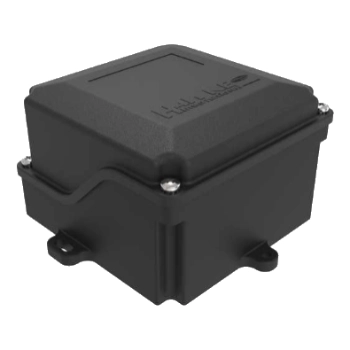

PL5 Range: Product Details
- PL511, PL513, PL514 and PL520
- Hazardous area zones 1/21, 2/22
- Increased safety EX e and dual certified ATEX/IECEx
- 50% lighter than traditional GRP enclosures
- Mounting feet externally Eliminates need to remove lid when installing or removing enclosure
- Ease of installation and inspection with dropped lid design (not on 513 and 520?)
- IP66 and IP67 ingress protection
- Impact resistance up to 7Nm (not on 513 and 520?)
- -60⁰C to +75⁰C operating temperature

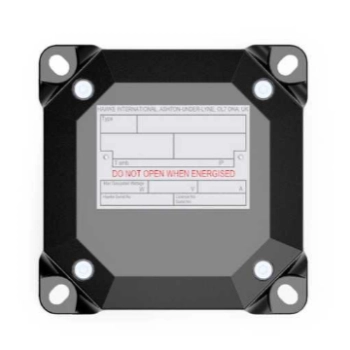

PL6 Range: Product Details
- PL612, PL615, PL620, PL626, PL630, PL642, PL644
- Hazardous area zones 1/21 and 2/22
- Impact resistance of up to 20Nm
- High degree of corrosion resistance
- Anti-static
- Ease of installation with external mounting feet
- IP66, IP67 ingress protection
- -60⁰C to +75⁰C operating temperature

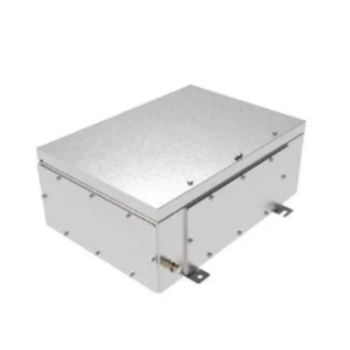

Stainless Steel Enclosures for Ultimate Protection
Hawke International's Stainless Steel S Series enclosures are crafted for maximum corrosion resistance and reliability. Suitable for the most challenging environments, these enclosures offer extensive protection and easy installation with external mounting feet.
Product Details
- Available in Sizes
- 1 (S1)
- 2 (S2)
- 2L (S2L160 and S2L210)
- 3 (S3)
- 4 (S4)
- 4L (S4L)
- 5 (S5)
- 6 (S6)
- 7 (S7)
- 8 (S8)
- 9 (S9)
- Hazardous zones 1/21 and 2/22
- Certified for Exe and Ext protection
- 316L Stainless steel construction
- one piece silicone sponge gasket provides DTS01 deluge protection and ingress protection to IP66
- Dual certified ATEX/IECEx
- External mounting feet for ease of installation
Extensive Range of Hawke International Products
Our portfolio extends beyond glands and enclosures, including a variety of armoured and unarmoured cable glands, industrial connectors, and specialized washers. Each product is engineered to enhance safety and performance in hazardous zones.
- Armoured cable glands
- 501/453 RAC (Reversible armour clamping) Ex de
- 501/453 Universal Ex de
- ICG 653/Universal Ex de
- NEW 501/453 Universal gland Ex de
- PSG 553/RAC cable gland
- 501/RCG (Rapid Connection Gland)
- Industrial cable glands
- 121
- 151 RAC
- 153 RAC
- 153 universal
- FibreEx connector
- Unarmoured cable glands
- 501/421 Ex de
- 501/423 Ex de
- ICG 623 Ex de
- Hazardous area thread converters
- Adapters
- Reducers
- Stopping plugs
- Brass
- Brass nickel plated
- Stainless steel
- Nylon
- Enclosures
- GRP
- PL range
- PL511 range
- Stainless Steel
- Easy access enclosures
- Hawke S series
- Connectors
- ControlEx
- HEAVYCON (heavy duty connectors)
- InstrumEx
- PowerEx
- Gland accessories
- Earth tags
- Lock nuts
- IP washers
- Anti-vibration washers
- Shrouds
- GRP
Technical Product Library
Discover Hawke International Product Information
Explore our full suite of Hawke International offerings in our Technical Library. Here, you can access detailed specifications and comprehensive product information to select the perfect solution for your needs.
About Hawke International
Premium Hazardous Area Equipment
Established in 1955, Hawke International has upheld a legacy of innovation and leadership in the field of hazardous area and industrial connection solutions. As part of the Hubbell group, Hawke are market leaders in hazardous area and industrial cable glands and a range of cutting-edge connection solutions. Hawke International is recognised worldwide for its innovative features and product design which improves the safety, versatility, reliability and ease of use of their products. www.ehawke.com
